How much RNA is in a Bioanalyzer?
RNA must be submitted in 0.2mL tubes at no greater than 5µL volume. Total RNA in each sample must be between 5-500ng/µL and mRNA concentration must be between 25-250ng/µL. If your sample is more concentrated please dilute with RNase free water.

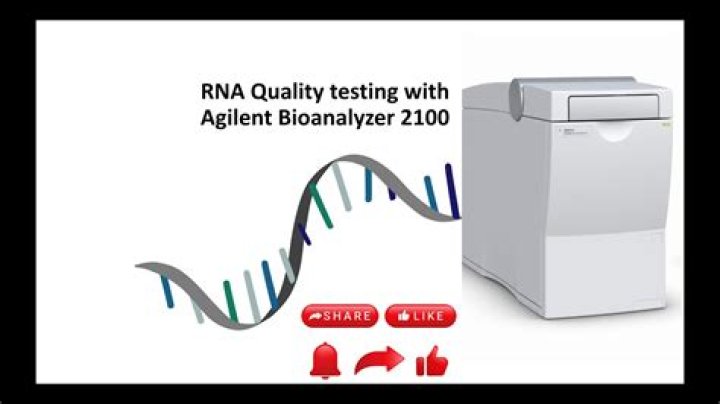

How does the Agilent 2100 Bioanalyzer work?
The Agilent 2100 Bioanalyzer is a microfluidics-based platform for sizing, quantification and quality control of DNA and RNA. After loading the sample on the Agilent chip of choice, the sample moves through microchannels and sample components are electrophoretically separated.
How do you read Bioanalyzer results?
Even though the ideal ratio is 2.0, the bioanalyzer rarely reflects this ratio. If the ratio is greater than 2.0 it may indicate the presence of sheared single stranded genomic DNA which can run around the 28S band. If the ratio is less than 1.0, there are usually definite degradation problems with the RNA.
What is a good RNA integrity number?
High-quality RNA will contain an RIN of at least 8, where partially fragmented RNA will contain an RIN within the range of 6–8. Any RNA sample that has a RIN below 5 should not be subjected to further fragmentation during the ScriptSeq protocol, as it will generate smaller than desired fragments.
How does Bioanalyzer work RNA?
How does the Bioanalyzer work? The bioanalyzer instrument detects biomolecules by laser-induced fluorescence. Each LabChip® contains an interconnected set of microchannels that is used for separation of nucleic acid fragments based on their size as they are driven through it electrophoretically.
How can I improve my RNA integrity number?
How to improve RNA Integrity?
- Remove media, wash cells with cold PBS, then add 5 mL TRIzol.
- Incubate samples for 5 min at RT.
- Centrifuge at 5,000 rpm at 4 degree C for 30 min.
- Transfer clear upper phase into new tube.
- Precipitate RNA by adding 2.5 mL isopropanol.
